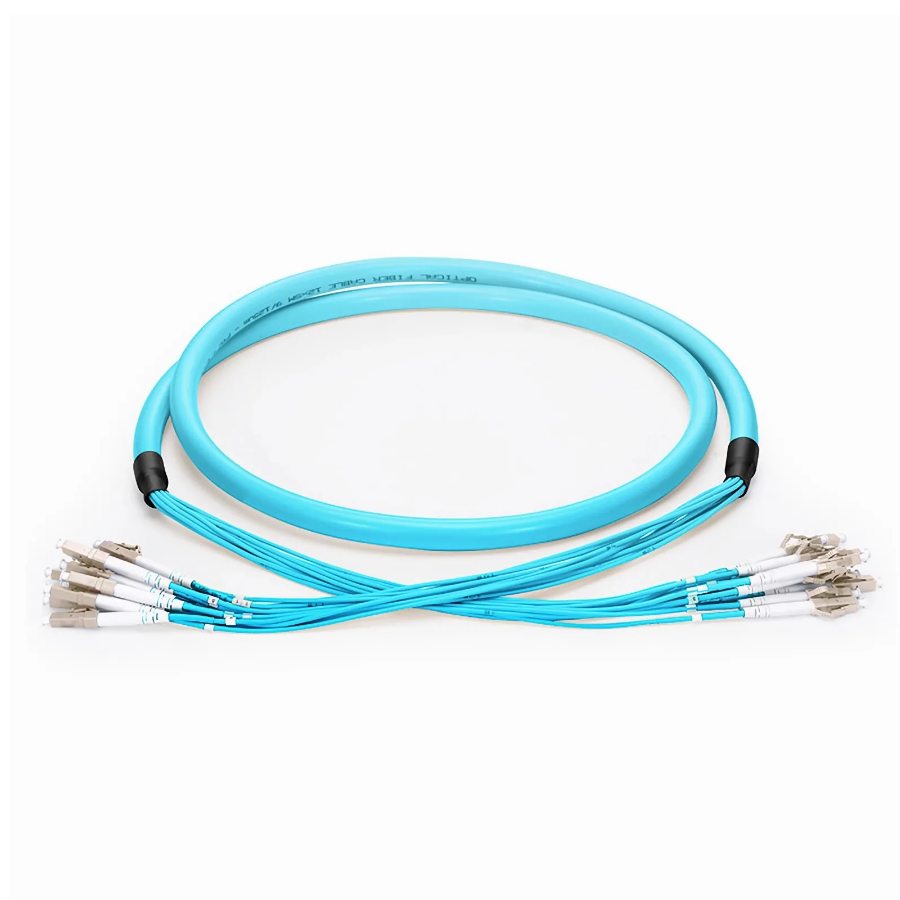

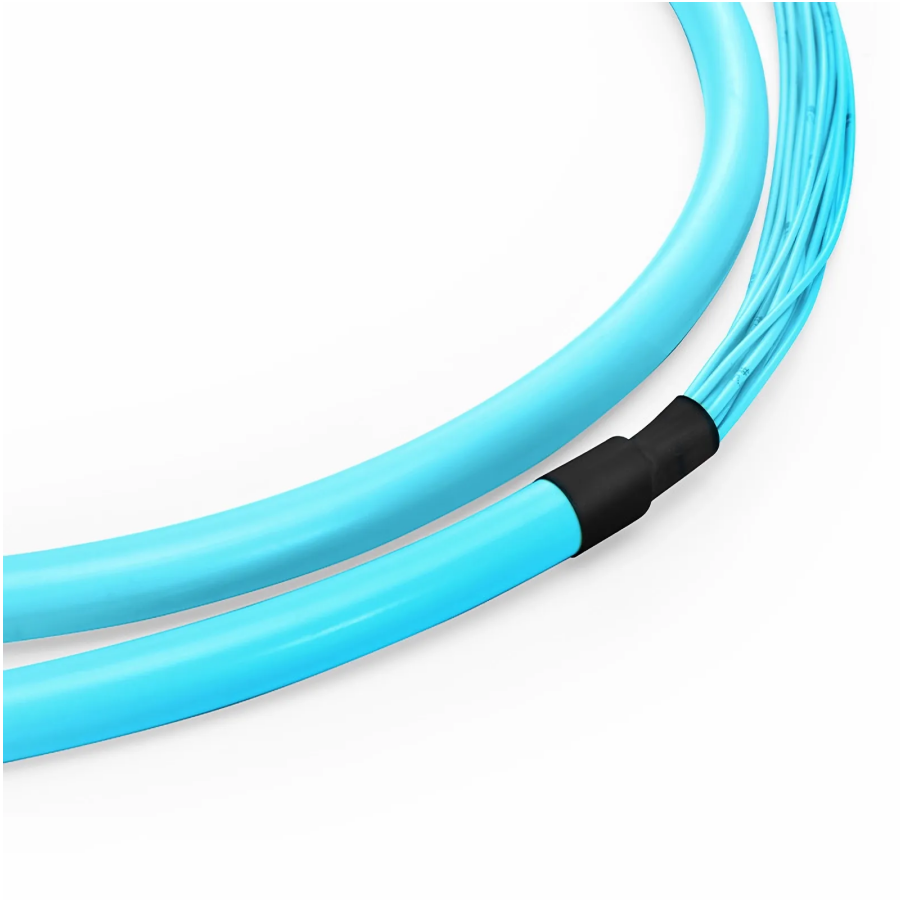

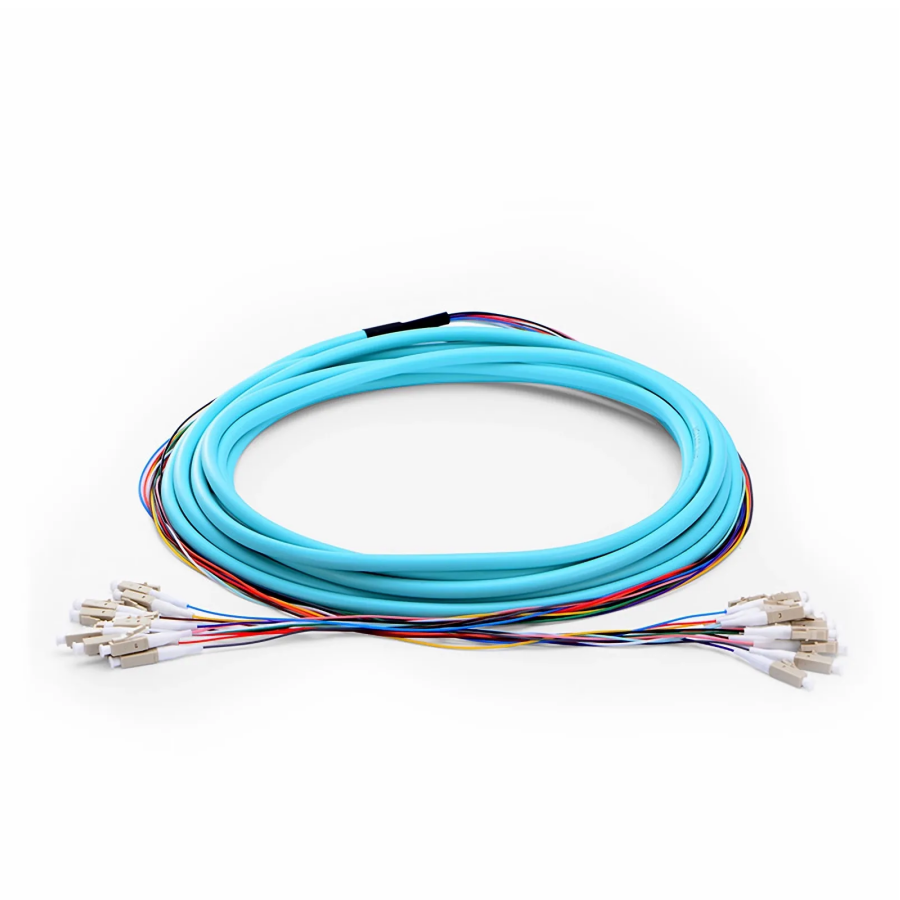

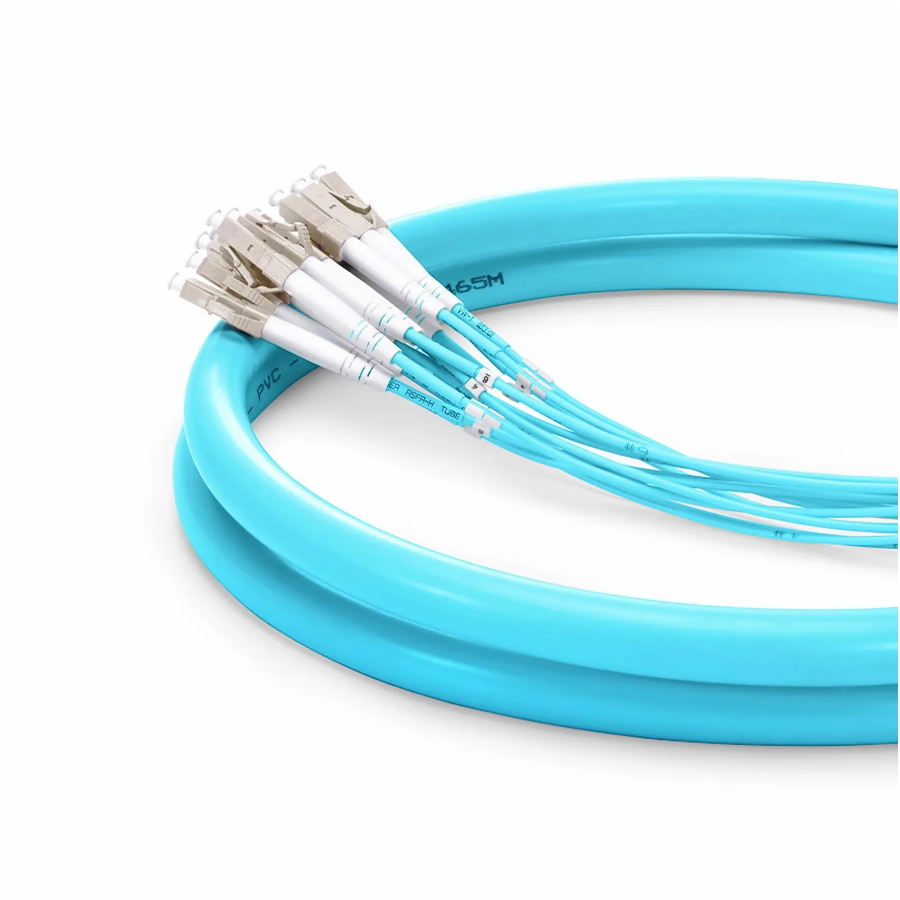

LC Indoor Tight-Buffered Multi-Fiber Breakout Cable

Model 12 Fibers 50/125 OM3 Multimode Indoor Multi-Fiber Pre-Terminated Breakout Cable

Sales: 99999 Stock: Available/Deliverable

Product Introduction:

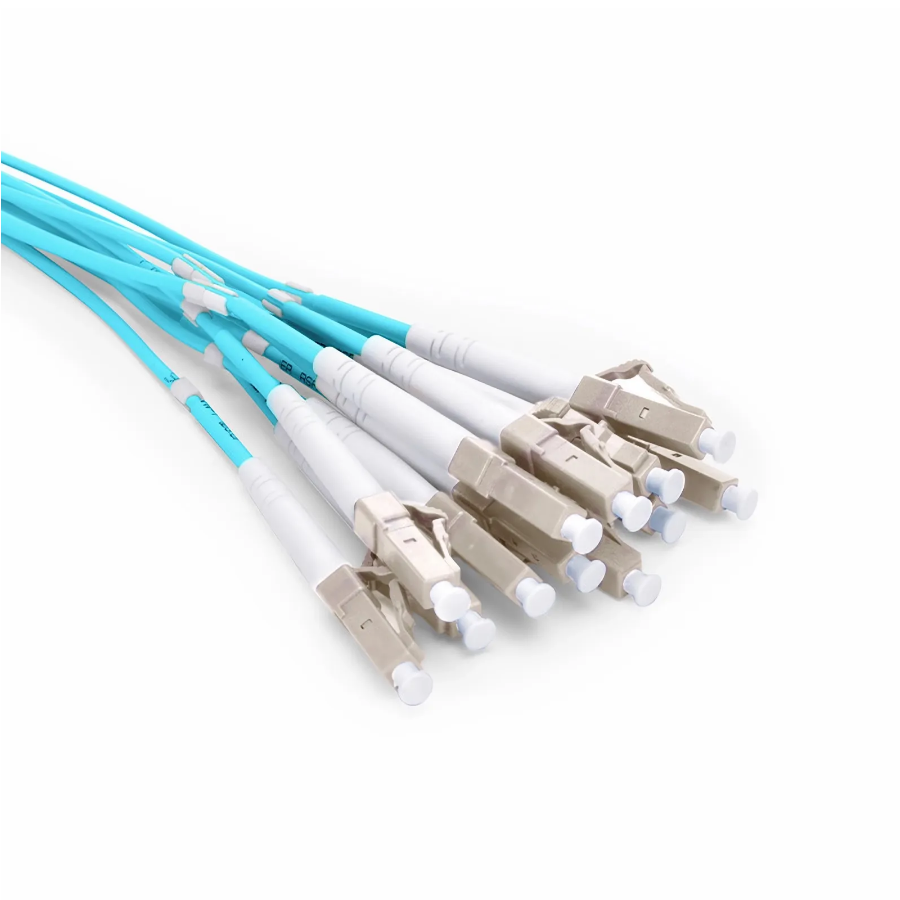

Available in LC/SC/FC/ST/LSH Connector
Available in Riser (OFNR)/LSZH/Plenum (OFNP) Flame-Retardant Jacket
Available in Four Different Breakout Types
Available in 2.0/0.9mm Breakout Diameter
Available in Pulling Eye to Prevent the Cables from Twisting During the Installation Process
Optical Performance Test for Normal Network Connections
Used for Indoor Interconnection in Data Center Applications
Inquiry
Product Details

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.

Specifications
Connector Type
LC/SC/ST/FC/LSH
Polish Type
UPC to UPC
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Fiber Count
12 Fibers
Cable Jacket
Riser (OFNR)/LSZH/Plenum (OFNP)
Fiber Grade
Bend Insensitive
Minimum Bend Radius
20/10D (Dynamic/Static)
Insertion Loss
≤0.3dB
Return Loss
≥20dB
Attenuation at 850nm
3.0dB/km
Attenuation at 1300nm
1.0dB/km
Breakout Outside Diameter (OD)
2.0/0.9mm
Trunk Outside Diameter (OD)
12.5±0.5/6.8±0.5mm
Breakout Type
0.3/0.5m Equal Breakout (Default)
Polarity (Duplex)
A (Tx) to B (Rx)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
Riser (OFNR)/Plenum (OFNP): -20 to 70°C (-4 to 158°F)
LSZH: -40 to 70°C (-40 to 158℉)
