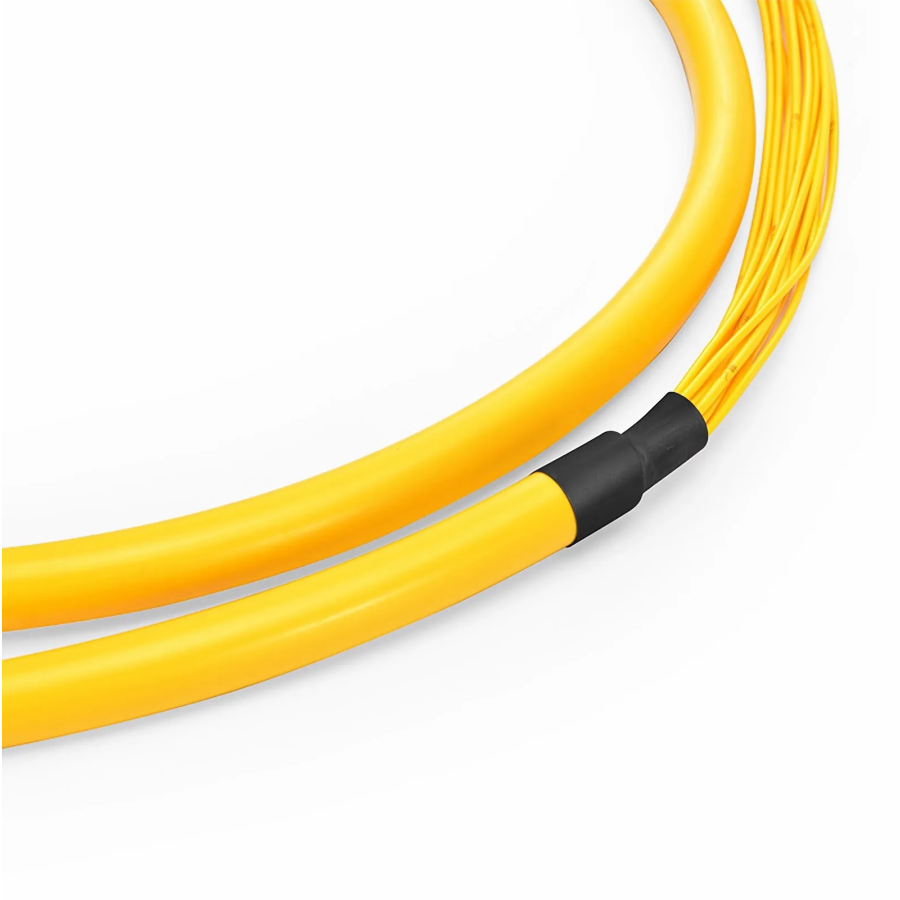

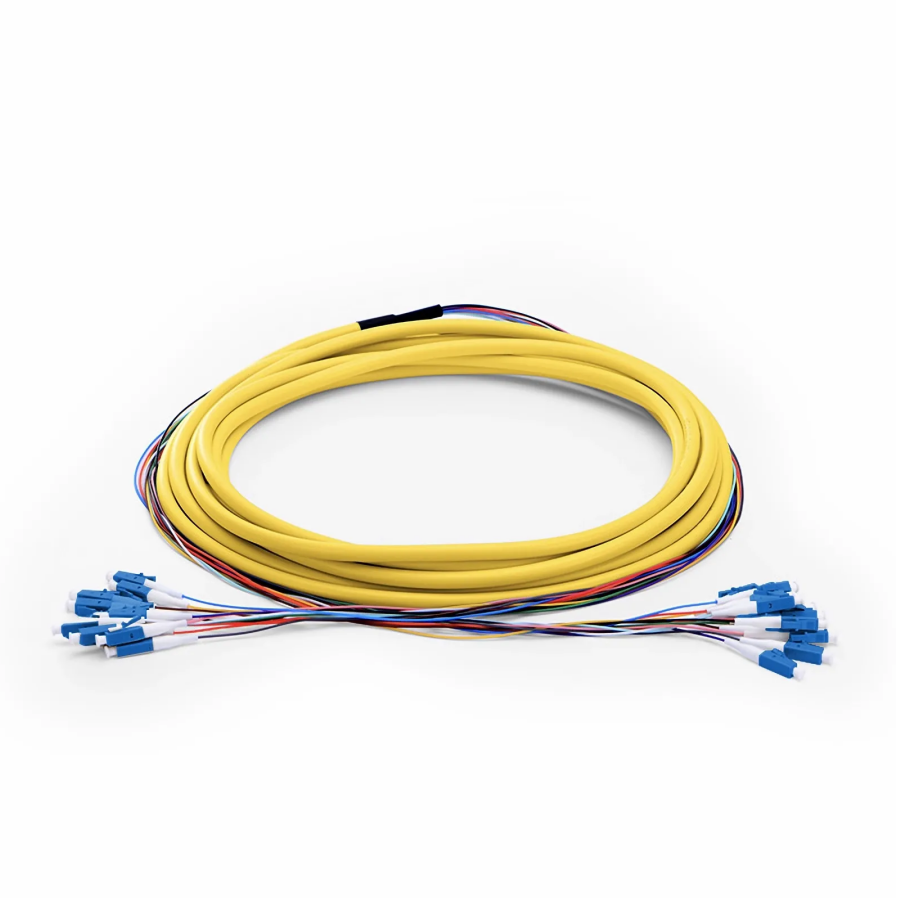

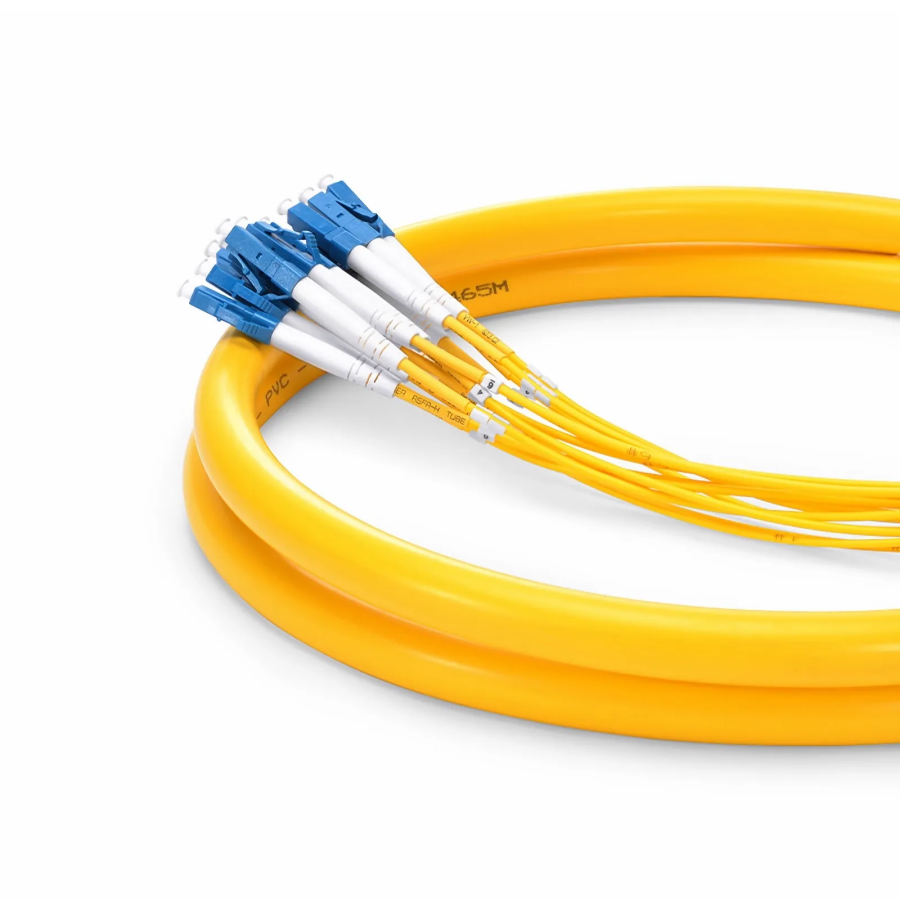

LC Indoor Tight-Buffered Multi-Fiber Breakout Cable

Model 4 Fibers 9/125 Single Mode Indoor Multi-Fiber Pre-Terminated Breakout Cable

Sales: 99999 Stock: Available/Deliverable

Product Introduction:
Available in LC/SC/FC/ST/LSH Connector
Available in Riser (OFNR)/LSZH/Plenum (OFNP) Flame-Retardant Jacket
Available in Four Different Breakout Types
Available in 2.0/0.9mm Breakout Diameter
Available in Pulling Eye to Prevent the Cables from Twisting During the Installation Process
Optical Performance Test for Normal Network Connections
Used for Indoor Interconnection in Data Center Applications
Inquiry
Product Details

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.

Specifications
Connector Type
LC/SC/ST/FC/LSH
Polish Type
UPC/APC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
4 Fibers
Cable Jacket
Riser (OFNR)/LSZH/Plenum (OFNP)
Fiber Grade
G.657.A1
Minimum Bend Radius
20/10D (Dynamic/Static)
Insertion Loss
≤0.3dB
Return Loss
UPC≥50dB, APC≥60dB (LC/SC/ST/FC)
UPC≥50dB, APC≥65dB (LSH)
Attenuation at 1310nm
0.36dB/km
Attenuation at 1550nm
0.22dB/km
Breakout Outside Diameter (OD)
2.0/0.9mm
Trunk Outside Diameter (OD)
7.5±0.5/4.8±0.3mm
Breakout Type
0.3/0.5m Equal Breakout (Default)
Polarity (Duplex)
A (Tx) to B (Rx)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
Riser (OFNR)/Plenum (OFNP): -20 to 70°C (-4 to 158°F)
LSZH: -40 to 70°C (-40 to 158℉)
