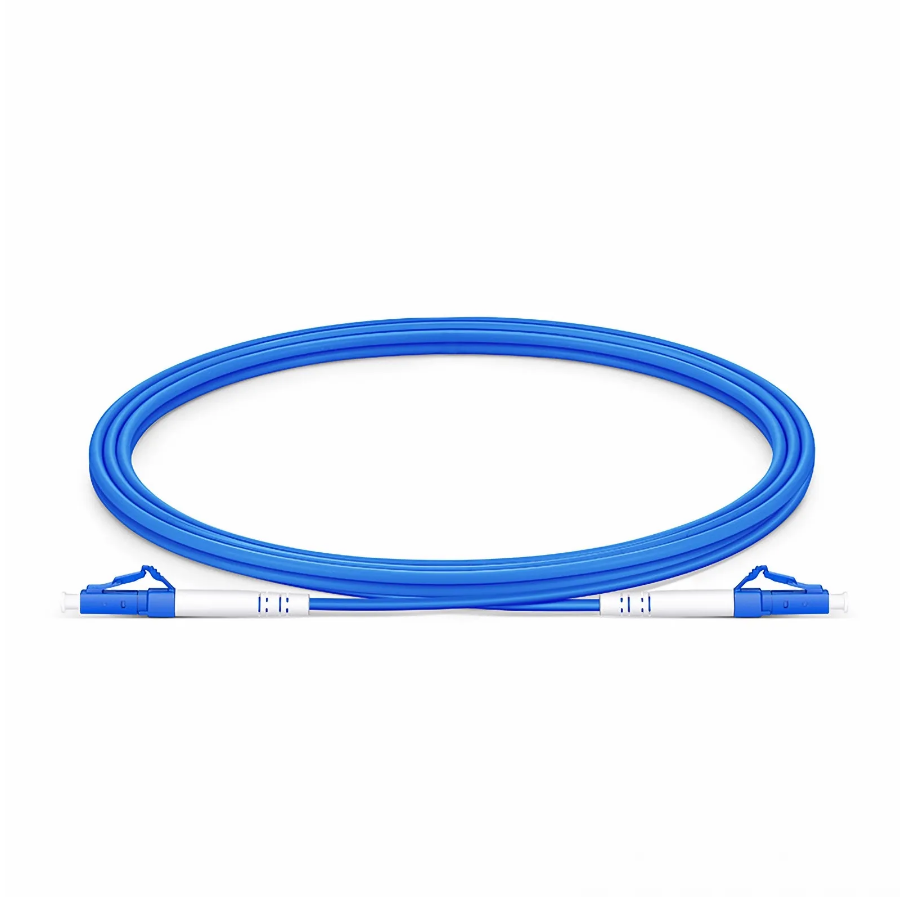

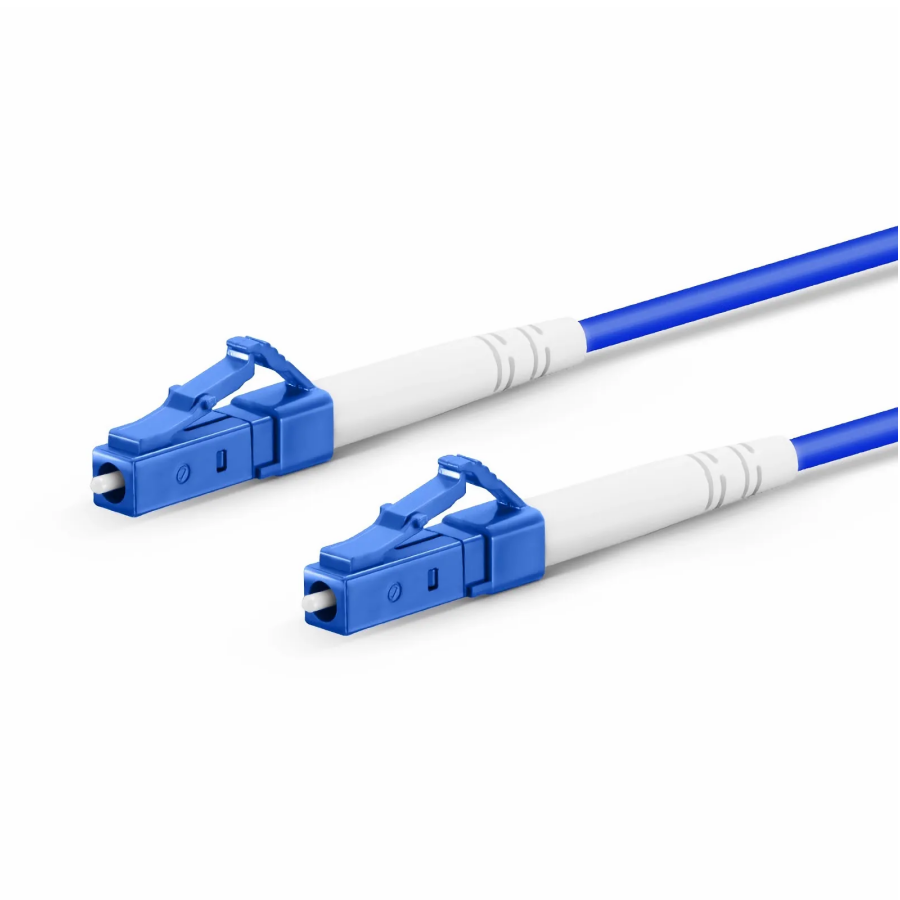

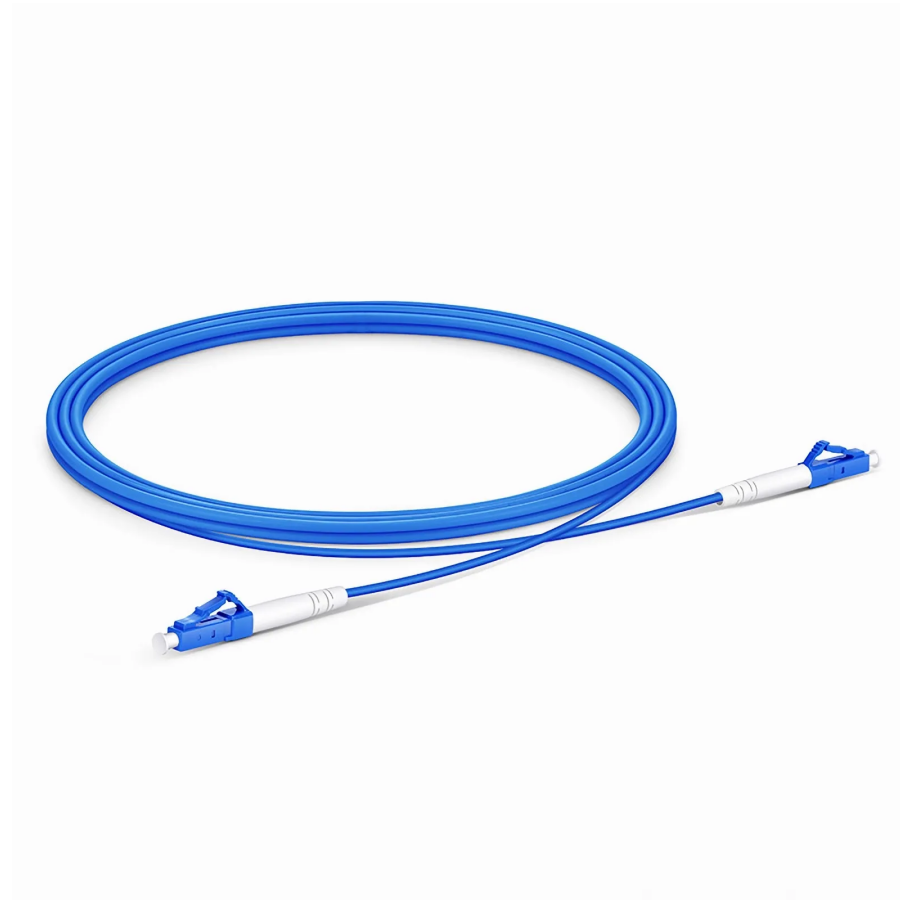

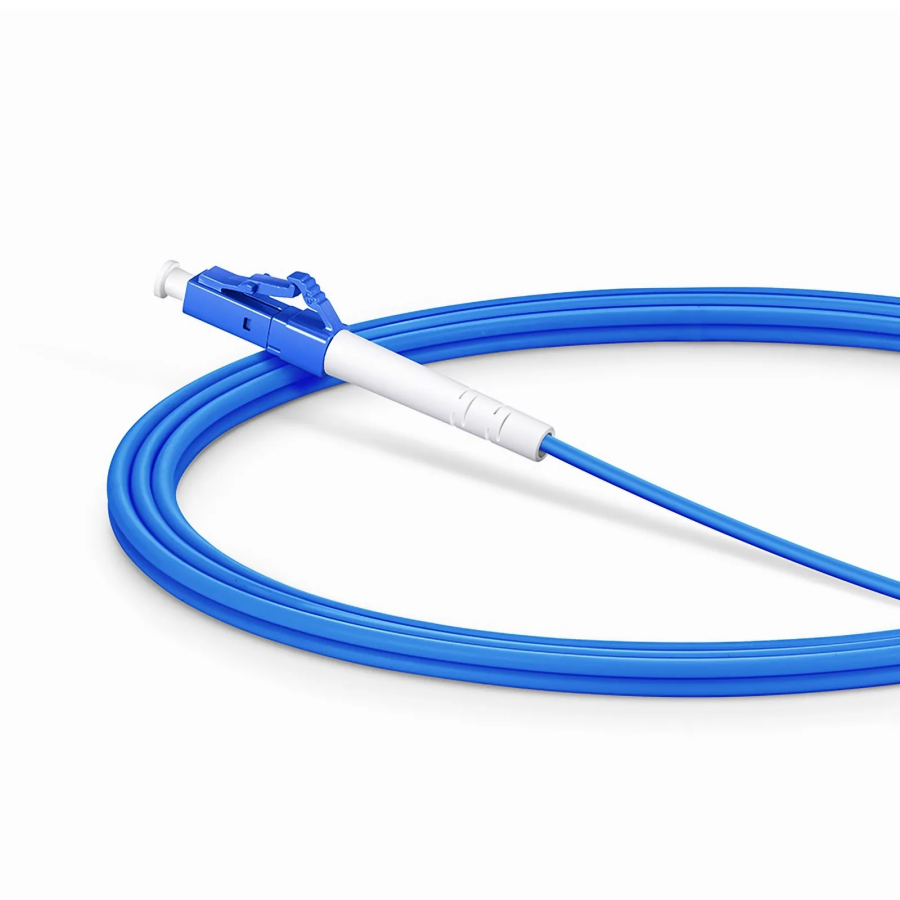

LC Armored Fiber Patch Cord

Model 1F, LC UPC Simplex to LC UPC Simplex, Riser (OFCR), OS2, Armored, 3.0mm

Sales: 99999 Stock: Available/Deliverable

Product Introduction:
Helical Steel Armor Provides Additional Crush, Bending, Pulling, and Rodent Protection
Eliminate the Need for Conduits to Improve Design Flexibility and Lower Installed Costs
Pull-proof Jacket with Max. 225N Tensile Strength
G.657.A1 Bend Insensitive Fiber & 10/5D (Dynamic/Static) Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Used in Intrabuilding Backbone, Horizontal Installations, and Applications Requiring Extra Ruggedness
Inquiry
Product Details

The armored fiber patch cable with built-in metal armor can resist mechanical damage from crushing, abrasion, cutting, and pulling in the most hazardous areas. It can protect fibers and prevent network outages. Armor construction eliminates the need for conduit to provide a smaller crush resistant pathway for improved design flexibility and lower installed cost.

Specifications
Connector Type
LC to LC
Polish Type
UPC to UPC
Fiber Mode
OS2 9/125μm
Fiber Count
Simplex
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Cable Outside Diameter (OD)
3.0mm
Flame Rating
Riser (OFCR-Optical Fiber Conductive Riser)
Construction Type
Single Armored, Stainless Steel Tube
Tensile Strength
120/225N (Long/Short Term)
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Operating Temperature
-25 to 70°C (-13 to 158℉)
Storage Temperature
-25 to 70°C (-13 to 158℉)
