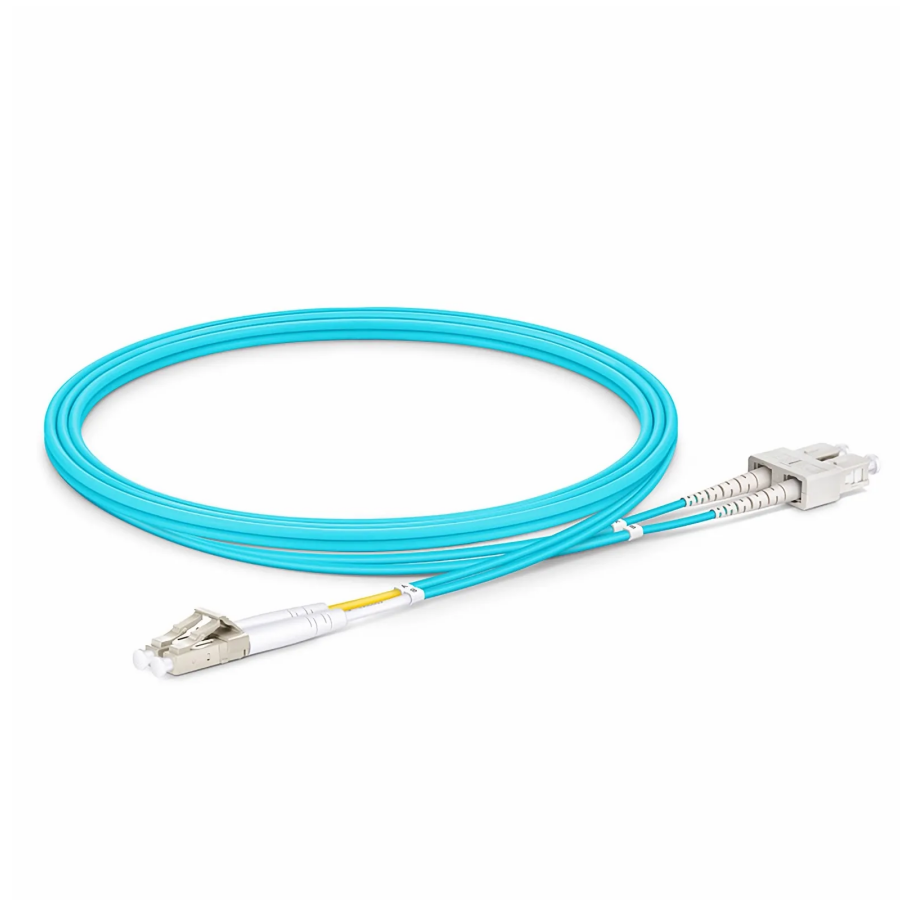

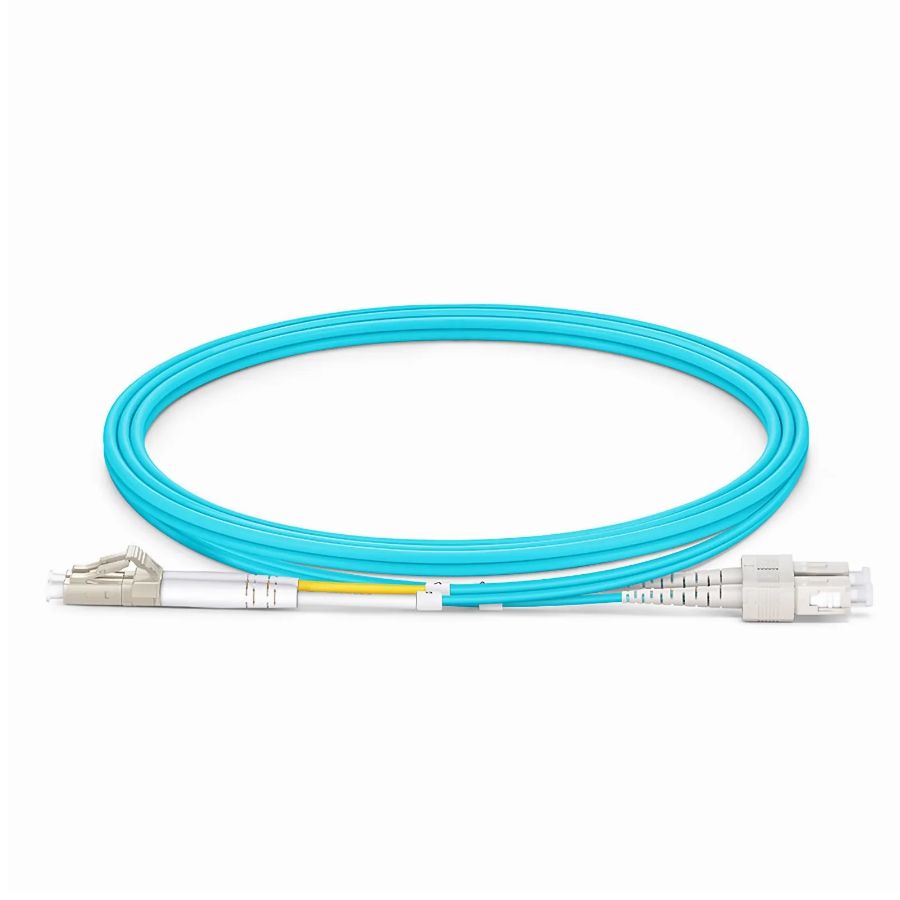

LC-SC Fiber Patch Cord

Model Fiber Patch Cable, LC UPC to SC UPC, Duplex, 2F, OM4, Riser (OFNR), 2.0mm

Sales: 99999 Stock: Available/Deliverable

Product Introduction:
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Duplex Zipcord Construction Reduces Risk of Damage from Crimping
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
Inquiry
Product Details

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OM4 fiber patch cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers, etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.

Specifications

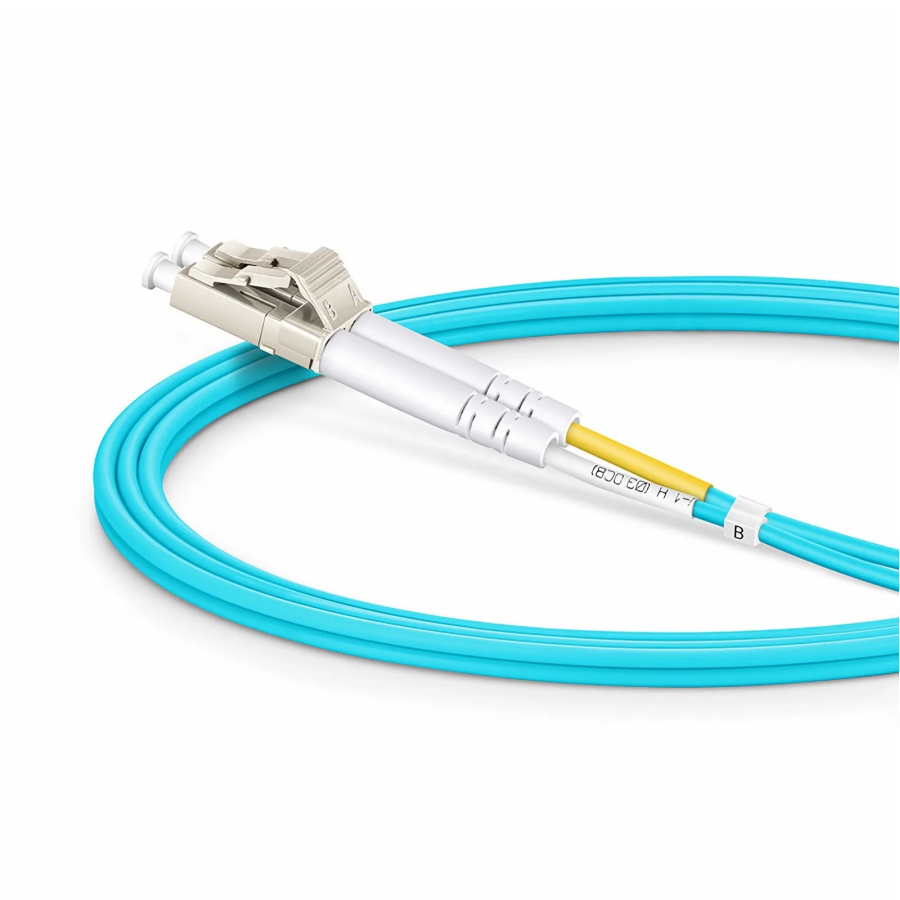

Connector A
LC UPC Duplex

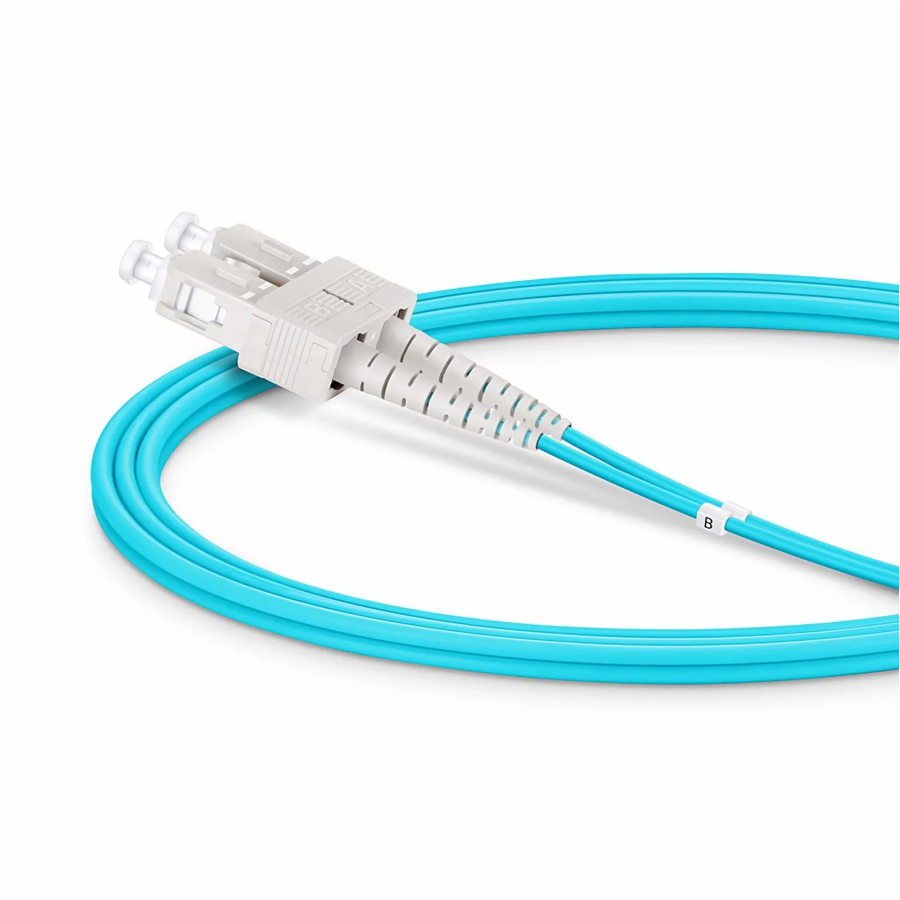

Connector B
SC UPC Duplex
Fiber Count
2 Fibers
Fiber Grade
Bend Insensitive
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
Polarity
A (Tx) to B (Rx)
Cable Type
Tight-Buffered
Cable Outside Diameter (OD)
2.0mm
Flame Rating
Riser (OFNR)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
1000 times
Tensile Strength
90/150N (Long/Short Term)
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Attenuation at 850nm
3.5dB/km
Attenuation at 1300nm
1.5dB/km
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-20 to 70°C (-4 to 158℉)
