MPO/MTP Cable

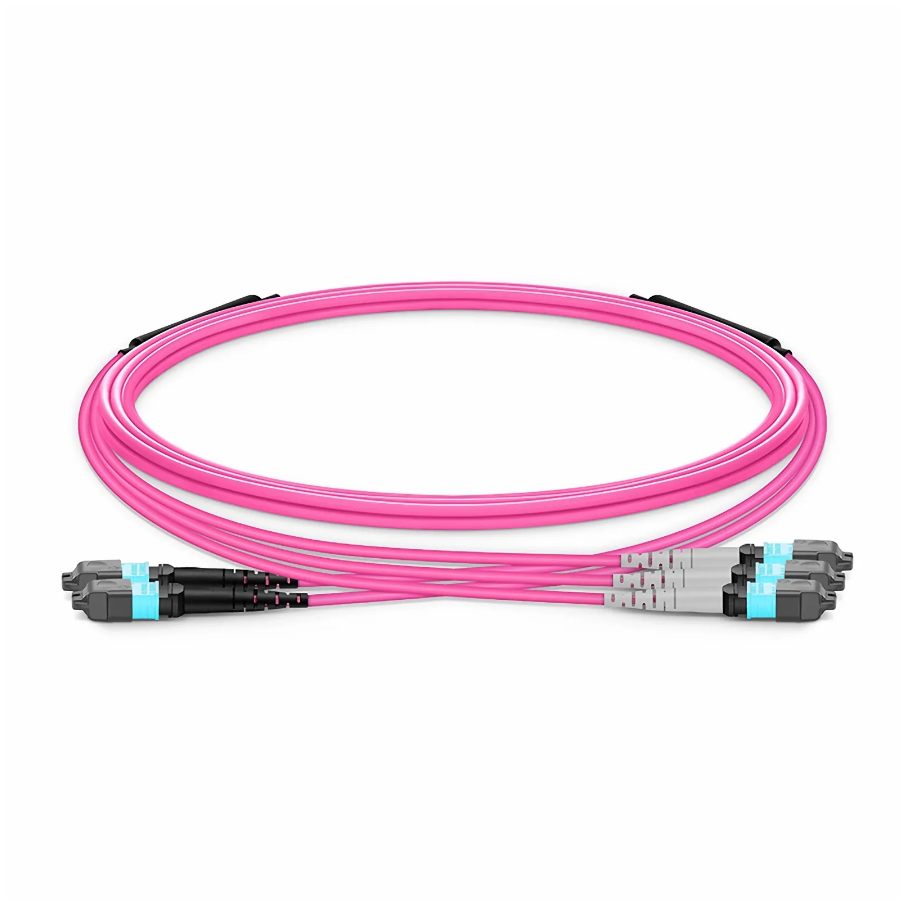

Model MTP Breakout Cable, 2 x MTP-12 M UPC to 3 x MTP-8 F UPC, 24F, OM4, OFNP, Type A

Sales: 99999 Stock: Available/Deliverable

Product Introduction:

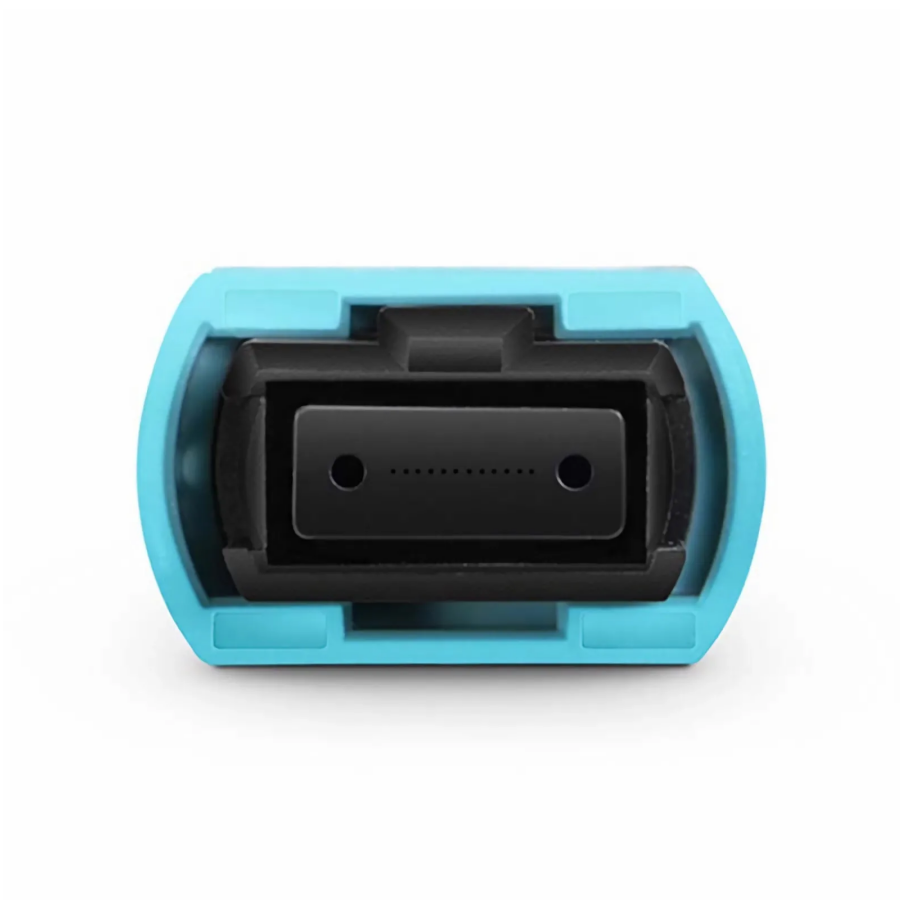

US Conec MTP® Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
Convert from 12 to 8 Fibers for 100% Fiber Utilizations
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Inquiry
Product Details

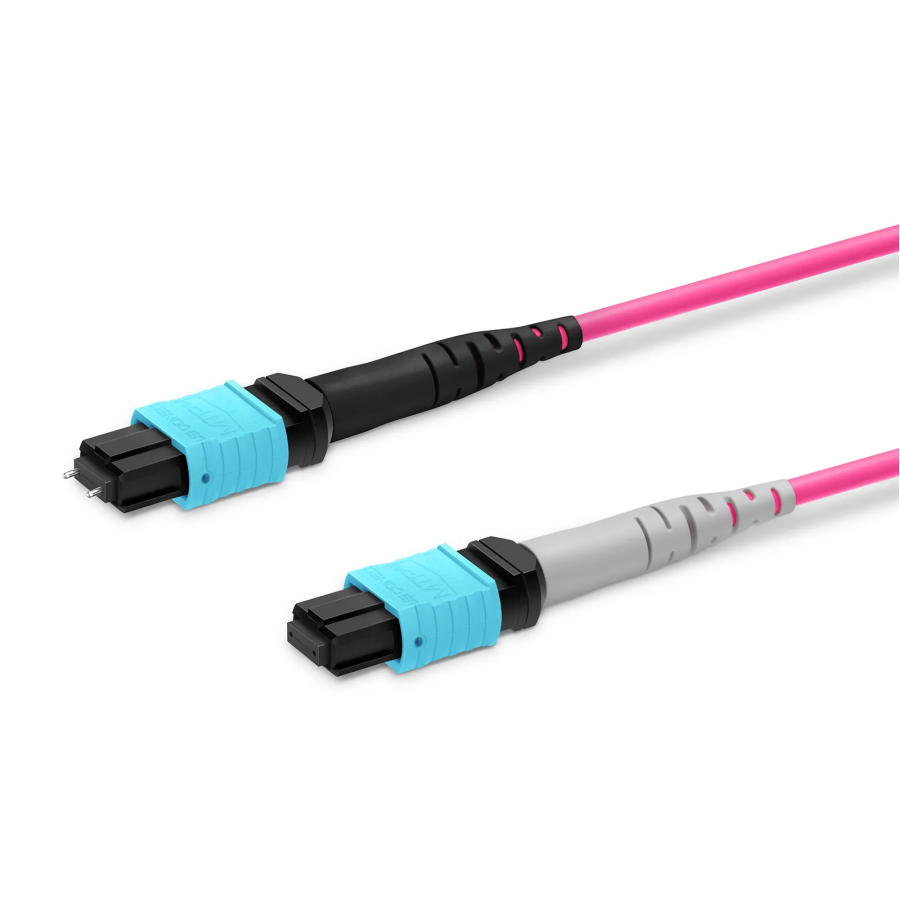

MTP® Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 12-fiber cabling system.

The 40/100G MTP® Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP® Breakout cables is a more cost-effective and lower-loss option.

Specifications
Connector A
US Conec MTP® Elite Male (Pinned)
Connector B
US Conec MTP® Elite Female (Non-Pinned)
Polish Type
UPC to UPC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
Fiber Count
24 Fibers
Polarity
Type A
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
90/180N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥27dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to +60°C (14 to 140℉)
Storage Temperature
-10 to +70°C (14 to 158℉)
