400G AOC

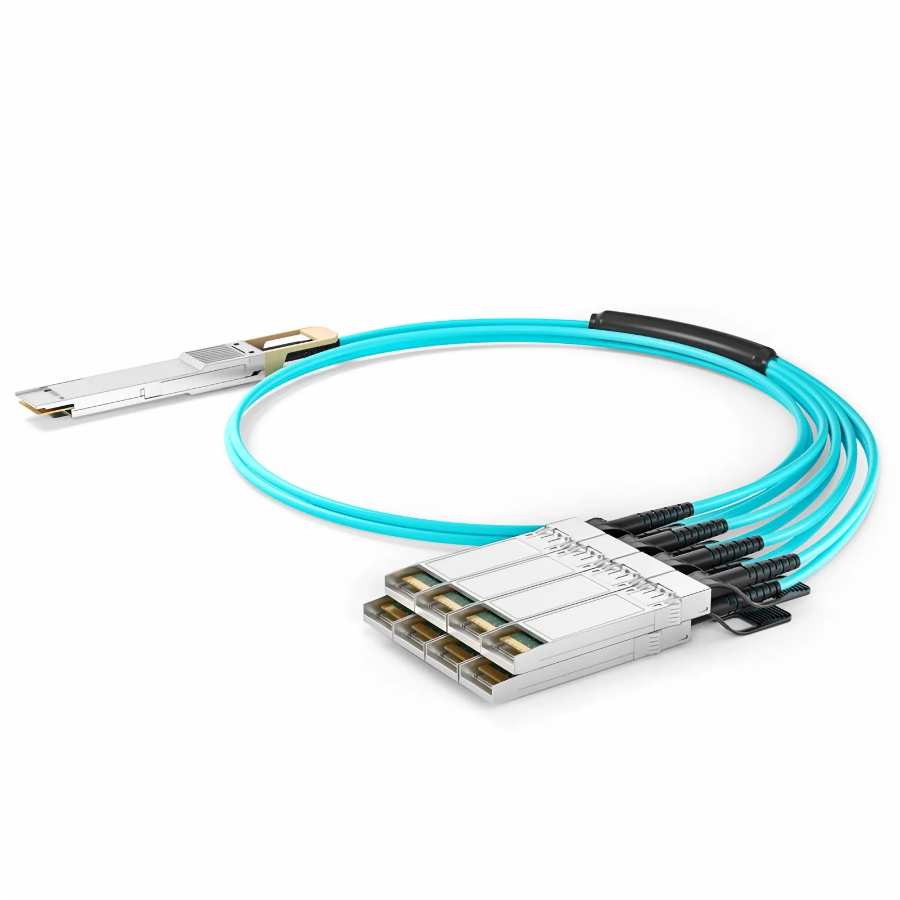

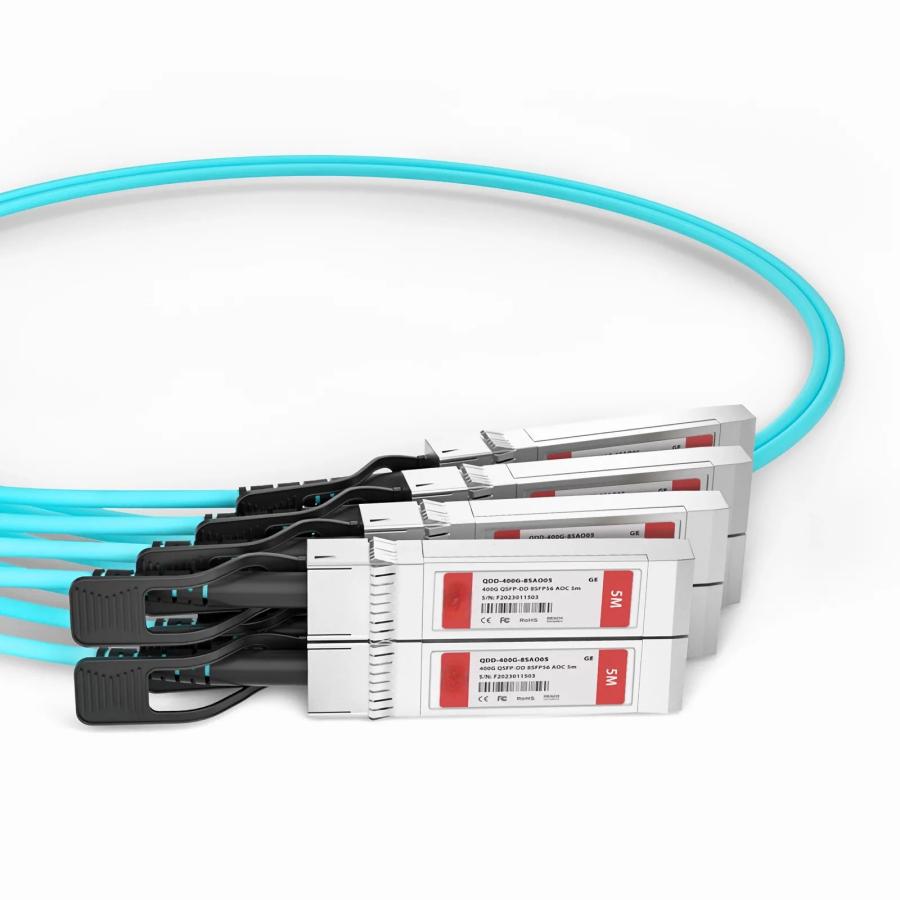

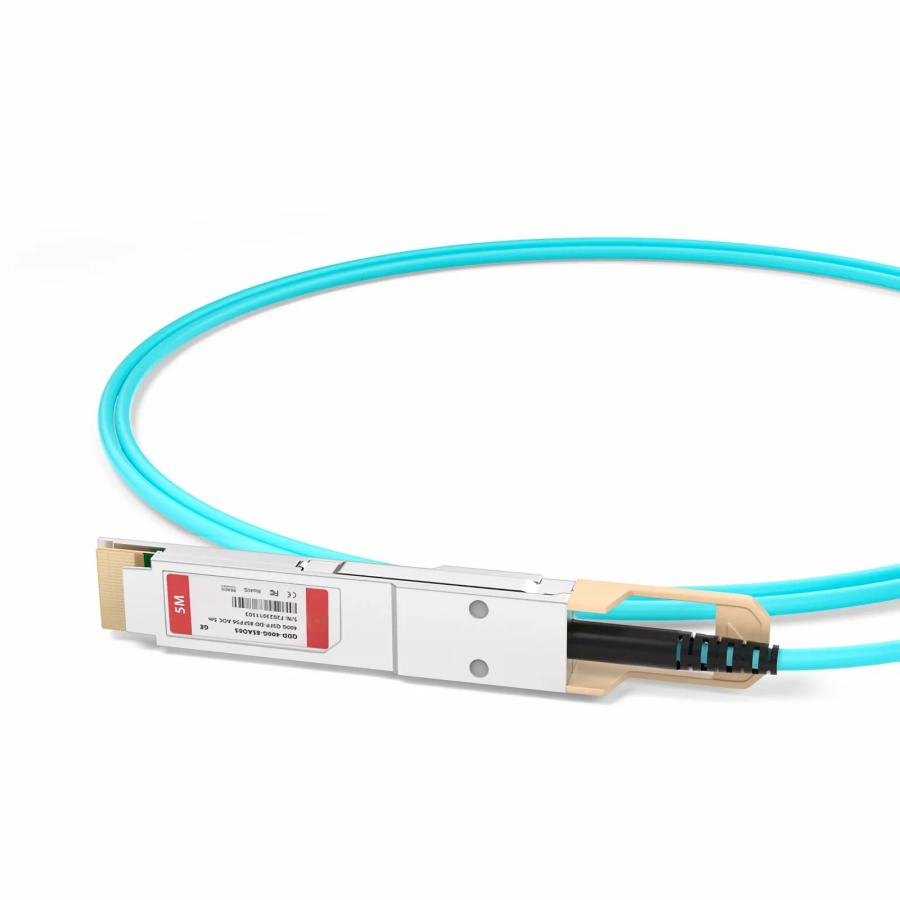

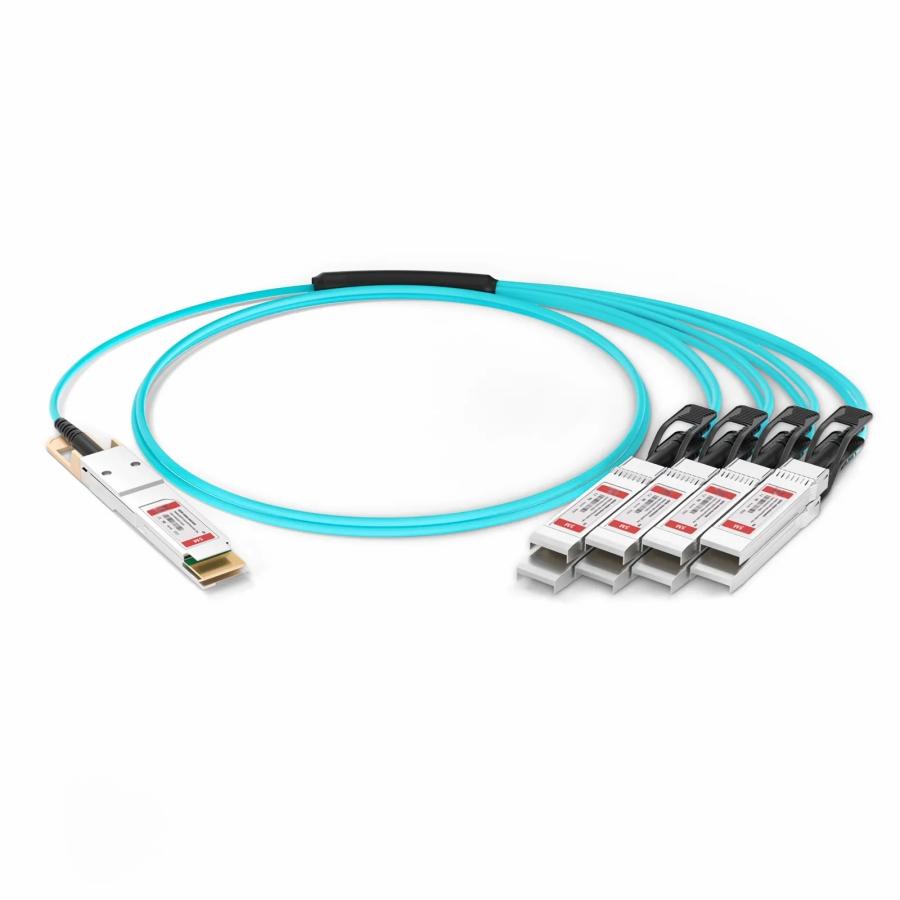

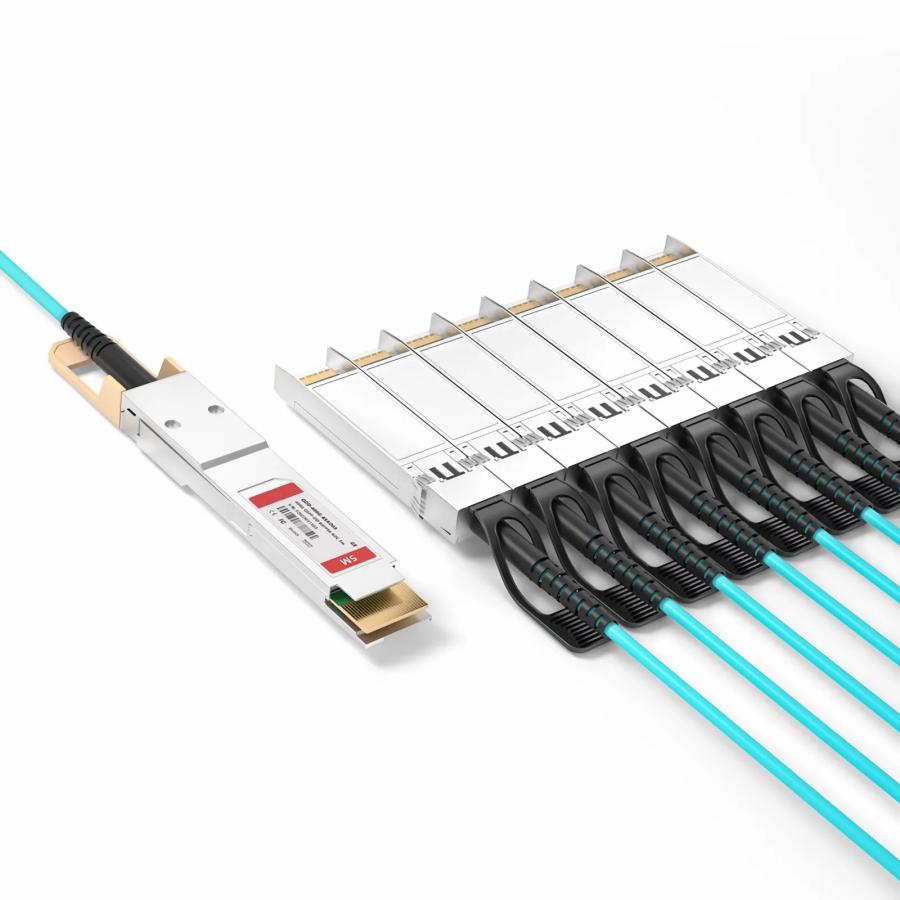

Model 400G QSFP-DD to 8 x 50G SFP56 Active Optical Breakout Cable 5M

Sales: 99999 Stock: Available/Deliverable

Product Introduction:
Built-in Semtech Chip, COB Packaging
Low Power Consumption <3W (50G Per End), 10W (400G Per End)
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Increased Reliability-VCSEL, No MPO Connectors, Low BER
PAM4 Modulation, Supports 400G to 8x 50G Ethernet Interoperability
Thin and Light Weight Fiber with High Air Flow for Flexible Routing
OFNP-Rated, Hot Pluggable QSFP-DD and SFP56 MSA Compliant
Inquiry
Product Details

The 400G QSFP-DD to 8x 50G SFP56 breakout active optical cables operate over multi-mode fibers (MMF). This breakout cable is compliant with QSFP-DD MSA/SFP28 MSA and IEEE 802.3cd Standards. Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.

Specifications
Part Number
QDD-400G-8SAO05
Vendor Name
CY COM
Form Factor
QSFP-DD to 8x 50G SFP56
Max Data Rate
425Gbps (8x 53.125GGbps)
Cable Length
5m
Cable Type
OM3
Minimum Bend Radius
30mm
Power Consumption
QSFP-DD <10W, SFP56 <3W
Transmitter Type
VSCEL
Receiver Type
PIN
Modulation Format
PAM4
Wavelength
850nm
Jacket Material
OFNP
BER
2.4E-4
Inbuilt FEC
No
Operating Temperature Range
0 to 70°C (32 to 158°F)
Protocols
QSFP-DD MSA, SFP56 MSA, IEEE 802.3cd
Warranty
5 Years
