400G AOC

Model 4 x 100G QSFP28 Active Optical Breakout Cable 10M

Sales: 99999 Stock: Available/Deliverable

Product Introduction:
Max. Power Consumption 10W (OSFP End)/5.5W (QSFP28 End)
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Increased Reliability-VCSEL, No MPO Connectors, Low BER
Thin and Light Weight Fiber with High Air Flow for Flexible Routing
OFNP-rated, Resistant to High Temperature and Corrosion
Supports 400G to 4x 100G Ethernet Interoperability
High-speed Electrical Compliant to IEEE 802.3bs&bm
Electrical Interface 8x 50G PAM4 (400GAUI-8) on OSFP Side, Quad 4x 25G NRZ (CAUI-4) on QSFP28 Side
Hot Pluggable OSFP MSA and SFF-8661 Compliant
Digital Optical Monitoring Capability for Strong Diagnostic
Inquiry
Product Details

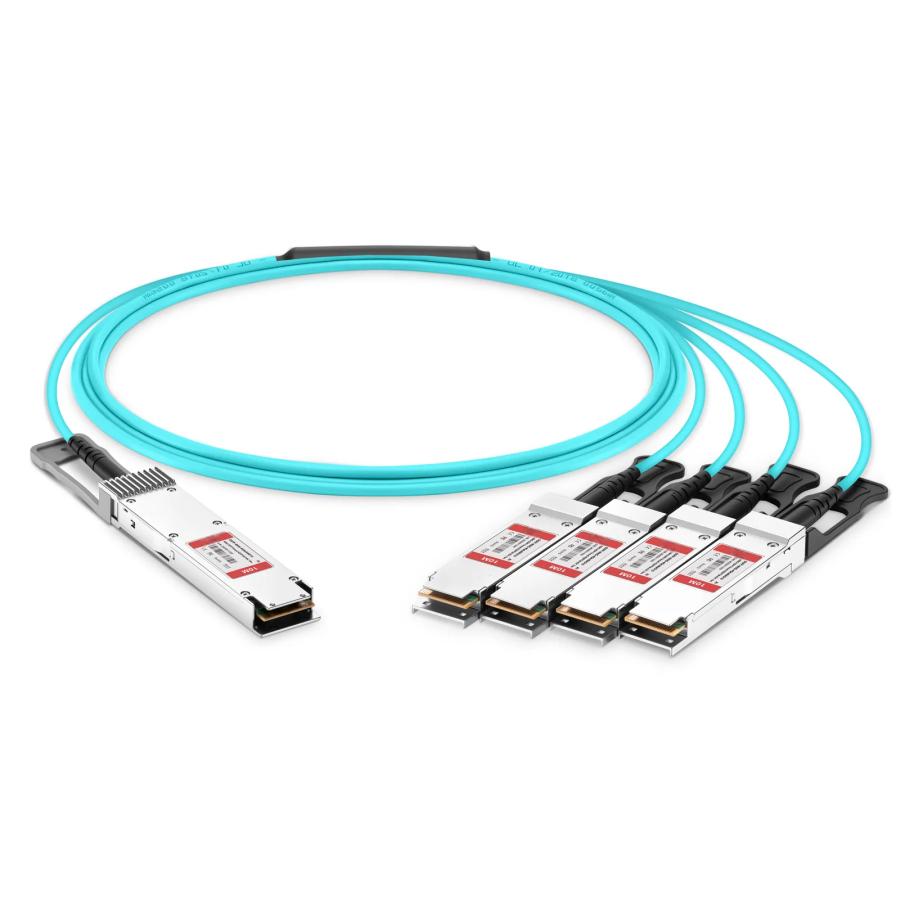

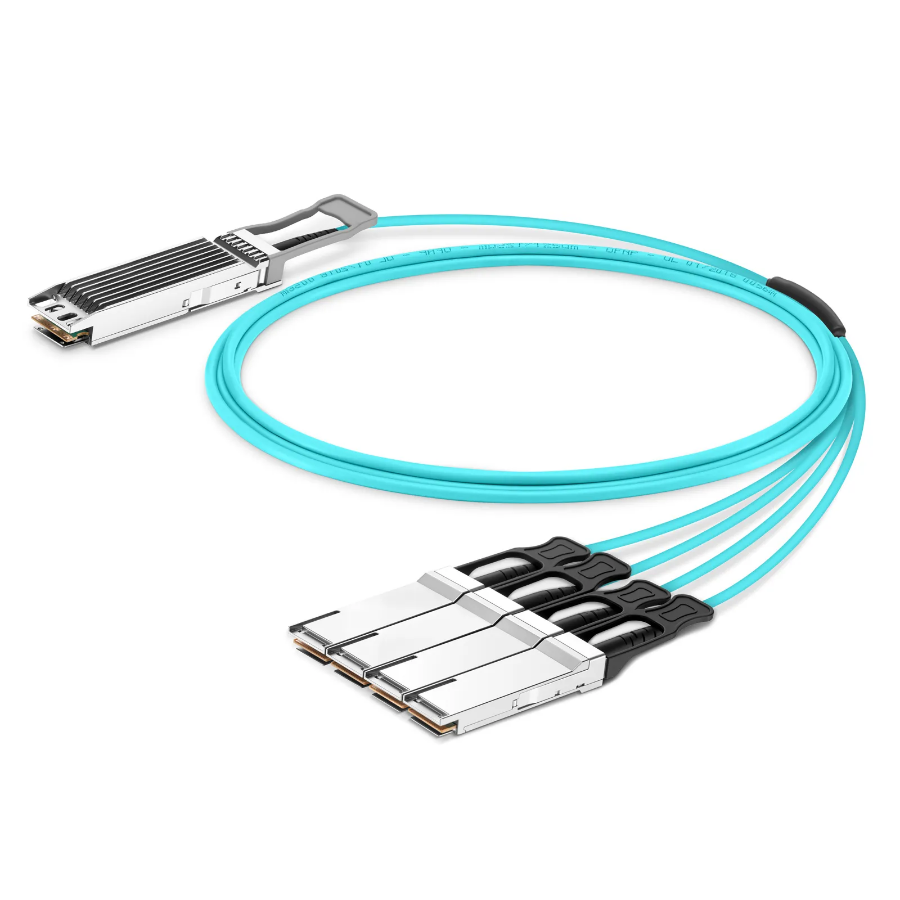

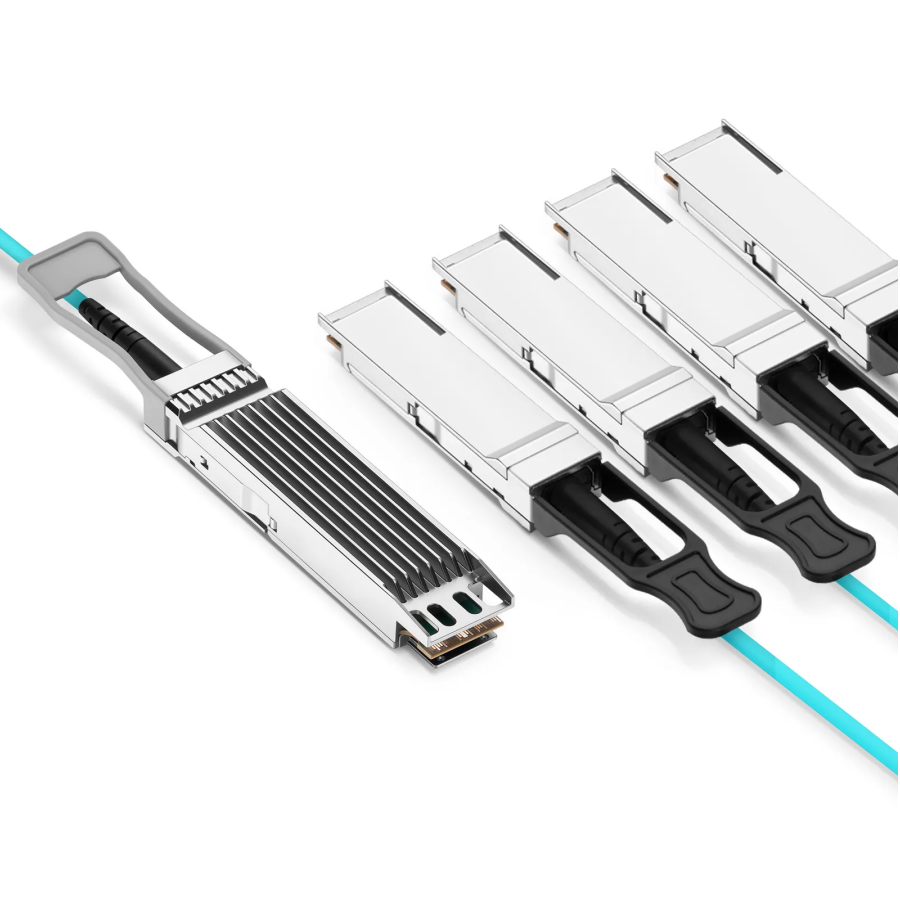

The 400G OSFP to 4 x 100G QSFP28 active optical cable is an 8-Channel, pluggable, parallel, fiber optic 400G OSFP to 4 x 100G QSFP28 AOC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. This active optical cable is compliant with IEEE802.3bs-400GAUI-8, IEEE802.3bm-CAUI-4, OSFP MSA, and SFF-8661.
Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.

Specifications
Part Number
OSFP-400G-4Q4xNAO10
Vendor Name
CY COM
Form Factor
OSFP (Finned Top) to 4x QSFP28
Max. Data Rate
400Gbps
Cable Length
10m (33ft)
Cable Type
Breakout AOC
Wavelength
850nm
Minimum Bend Radius
30mm
Transmitter Type
VSCEL
Receiver Type
PIN
Power Consumption
OSFP ≤10W, QSFP28 ≤5.5W
Jacket Material
OFNP
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Modulation Format
8x 50G-PAM4 to Quad 4x 25G-NRZ
DDM/DOM
Supported
Temperature Range
0 to 70°C (32 to 158°F)
Protocols
CMIS 4.0, SFF-8636，IEEE 802.3bs-400GAUI-8, IEEE802.3bm-CAUI-4, OSFP MSA, SFF-8661, SFF-8639
Warranty
5 Years
